Masaba 42x150

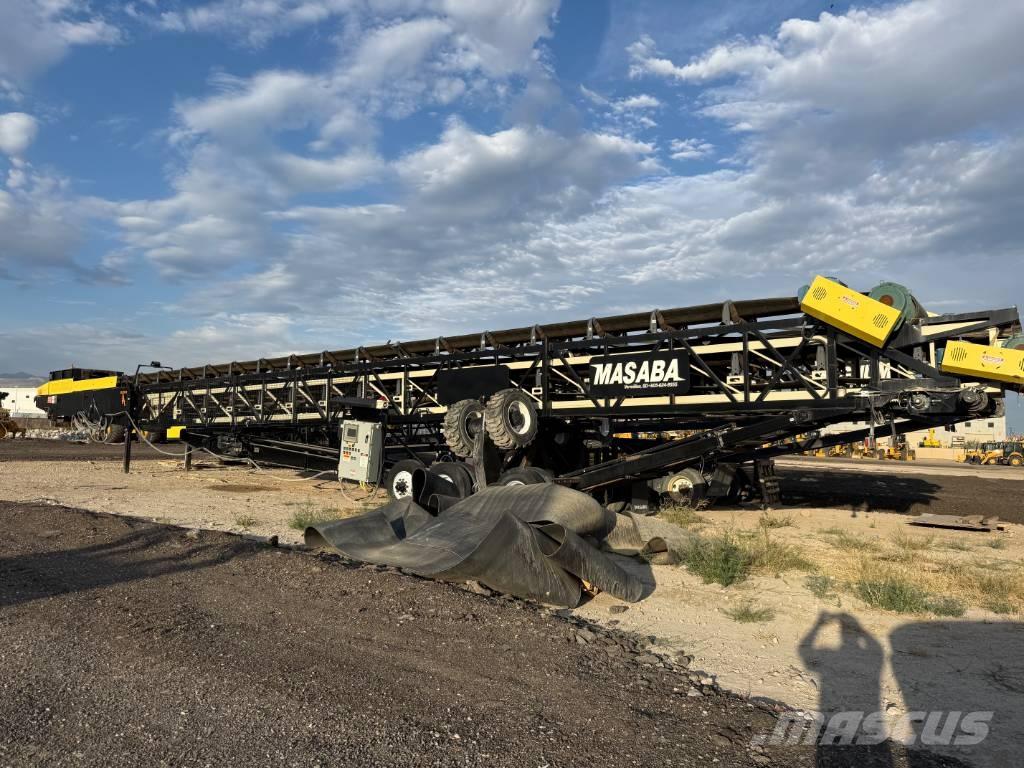

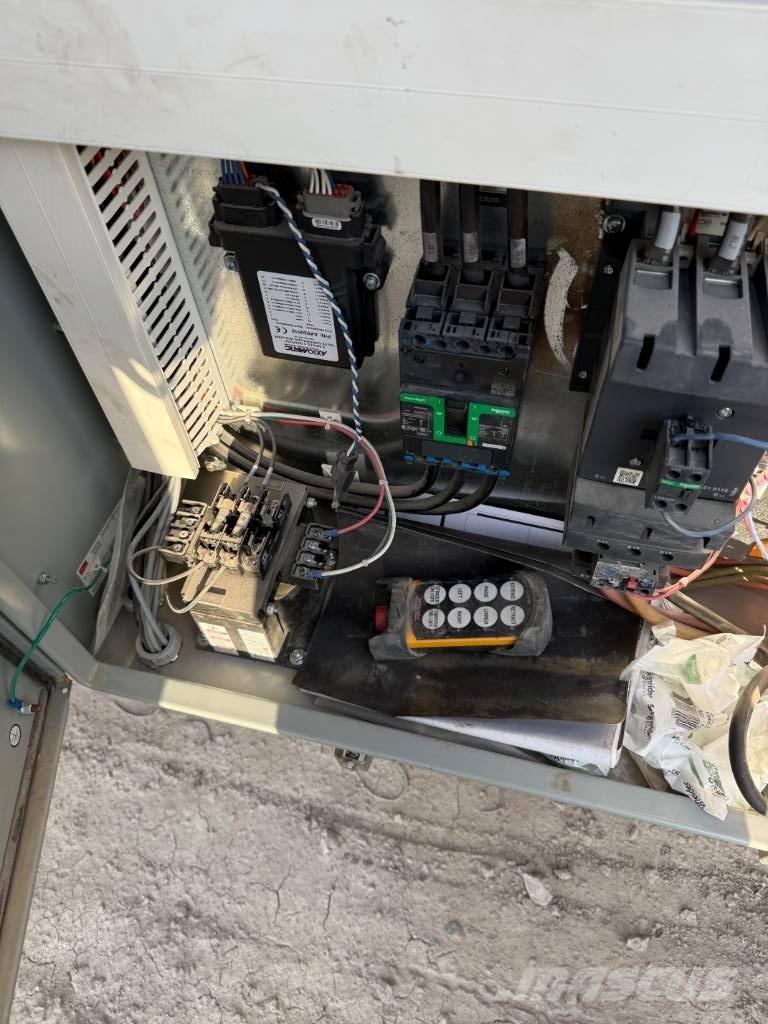

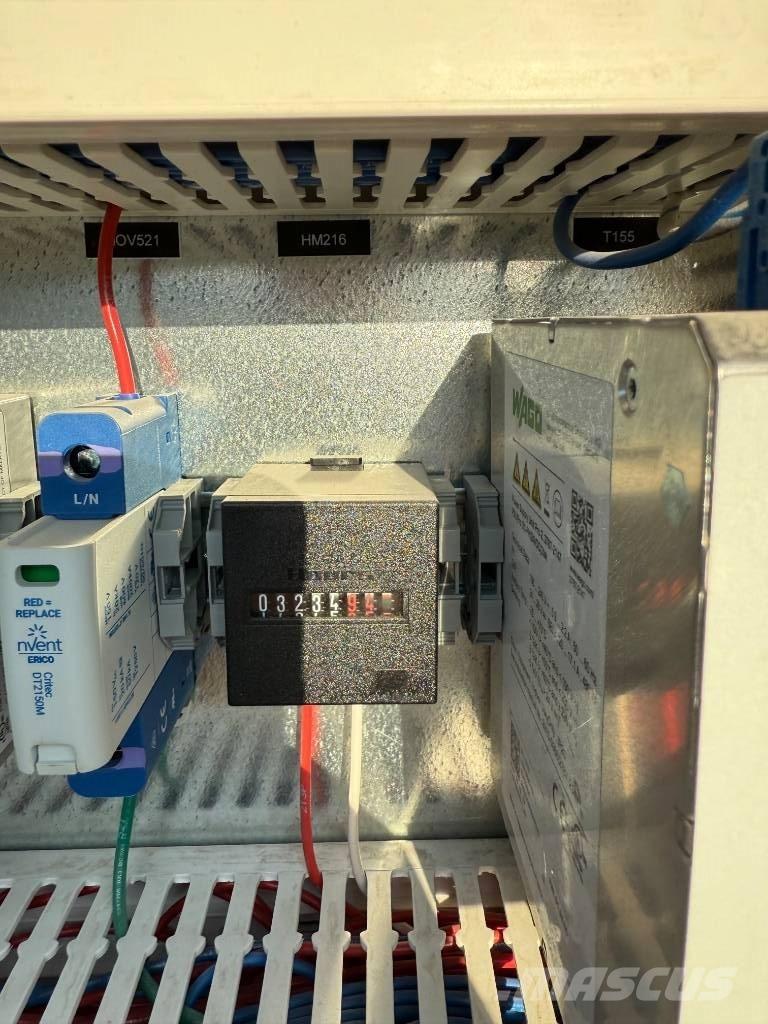

42” X 150’ LOW PROFILE MAGNUM TELESCOPING STACKER Conveyor Frame • Main Frame – 52” Deep engineered truss 83’ long • Counterweight – On-board design installed in the main frame tail • Stinger Frame – 36” Deep engineered truss 74’ long • Stinger Drive – MASABA TRACK TECHNOLOGY. Eliminates danger of cable breakage and uncontrolled roll back - No winch or cable. Conveyor extends to 150’ length Road Portability • Tubular Undercarriage – Hydraulic raise & lower with 20hp pumping unit • Travel Axle – Road portable tandem walking beam axle with dual (8) 11R x 22.5 tires and wheels • Tag Axle – Air ride suspension with (2) 11R x 22.5 tires and wheels • Hydraulic Folding Axle – radial travel axle with (4) 15 - 19.5 skid steer tires • Power Travel – 2 wheel drive with planetary drive on each wheel • Landing Legs – Manual landing legs to ease loading/unloading of conveyor from truck. • Road Portable Package – Including 5th wheel hitch, brakes, lights, and mud flaps • Towing Eye – For pit transport • Anchor Pivot Plate - Maintains tail end during radial travel • Tail Anchor Plate – recommended for operating on non-concrete surfaces Main & Stinger Components • Drives – Class II head end • Motors – WEG 60hp/50hp (dual 25hp balanced drive) • Gear Reducers – Dodge TAII shaft mount with backstop • Capacity – 1500 TPH based on 100# per cu/ft of material at 18 degrees • Belt Speed – 450/600 FPM • Head Pulley – Heavy Duty 20” diameter drum pulley with 3/8” herringbone lagging • Tail Pulley – Heavy Duty 18” diameter self-cleaning wing pulley • Take Ups – Screw type • Belting – 3-ply 3/16” x 1/16” 330 PIW • Belt Splice – Flexco mechanical steel fasteners • Belt Scraper – Flexco EZP1 • Transition Idlers (main) – CEMA C, Precision, 20 degree, sealed 5” diameter idlers • Troughing Idlers – CEMA C, Precision, 35 degree, sealed 5” diameter, 4’ spacing • Return Idlers – CEMA C, Precision, sealed 5”, return idlers, 10’ spacing • Self-Aligning (main) – (1) CEMA C, Precision, self-aligning idler • Hopper – 6’ long hopper with adjustable rubber flashing, radial receiving hopper and rock ledge Controls • Complete Switchgear - manual operation for extend/retract, raise/lower, axle jacks, start/stop conveyors and main disconnect • PLC – Fully automated 4-program package with large color touch screen control • Material Flow Sensor – pauses conveyor movement when material is not present Gas Power Unit • 13hp Electric Start Gas Power Unit with Hydraulics - reservoir, filter, valve body and plumbing – allows user to operate axle jacks & extend stinger conveyor to remove weight from kingpin for easier removal from truck & operational set up General Specifications • Guards – Tail pulley guard, v-belt guard and nip guard on head pulley. We do not warrant that our guards will meet all local codes. It is the responsibility of the end user to have them checked by a local inspector Options • Remote Grease Bank – for pulley bearings • Hydraulic Landing Legs – jacks only for loading/unloading from truck operate with 13hp gas powered electric unit or Main electrical panel • Wireless Remote Control – wireless control of all manual conveyor functions; 1,000 foot range • Vulcanized Belts – main & stinger conveyor belts • Impact Idlers – in lieu of steel rolls in load area on main conveyor • Safety Switch – ultrasonic radial travel limit switches provide protection from equipment and personnel while machine is traveling side to side
