INFO

Grupa proizvoda
Teleskopske podizne platforme
Brend/Model
Haulotte H 16 TPX
Godište proizvodnje
2014
Lokacija Mašine
Neuss, Nordrhein-Westfalen
Zemalja
Nemačka
Opšta ocena
1
2
3
4
5
Mascus ID
A9BE22F2

CENA

Izaberi valutu:

DETALJI

Broj internog magacina
5361, 5362, 5363, 5364, 5365, 5366, 5367,......
Visina na kojoj se radi
1570 cm
Tip motora
Dizel
Maksimalni horizontalni dohvat
1250 cm
Bruto težina
6600 kg
Maksimalni kapacitet dizanja
230 kg
Originalna boja
rot
Transportne dimenzije (DxŠxV)
8400 x 2260 x 2500 mm
Zemlja proizvodnje
Rumunija
Uslovi isporuke
EXW
Certifikati
CE
Ostale informacije

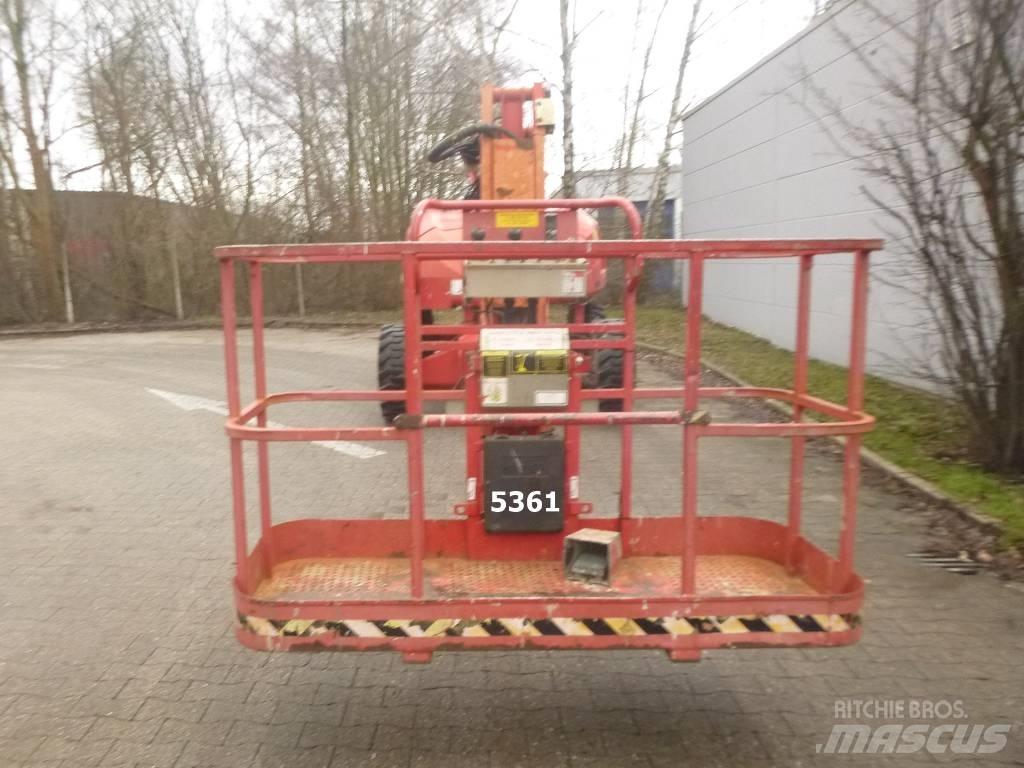

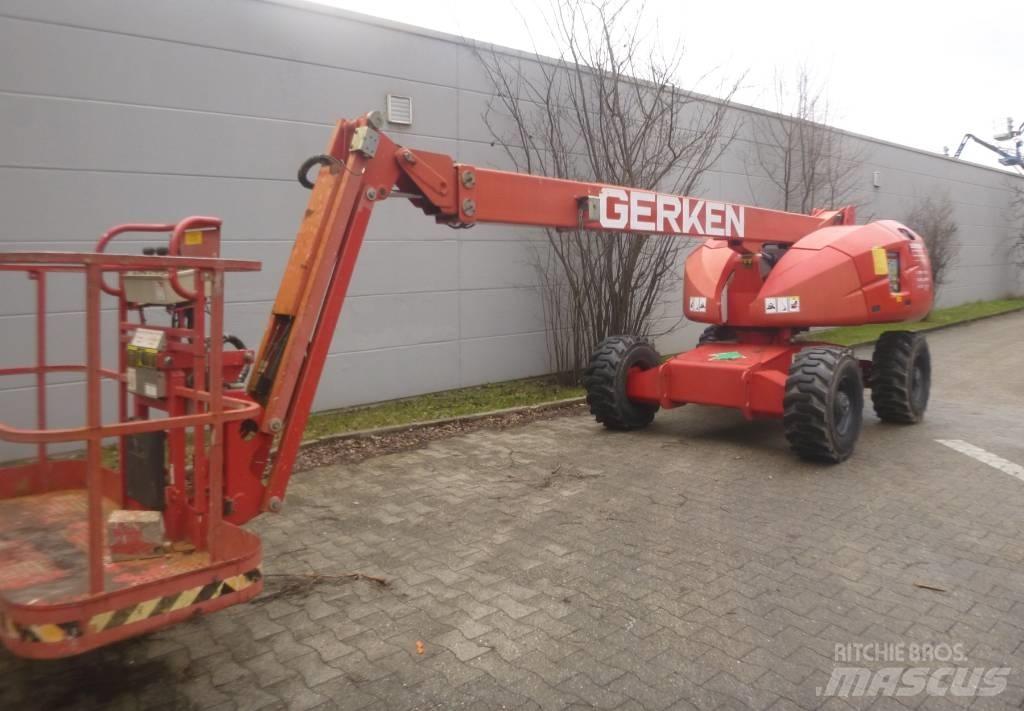

Units: 5361, 5362, 5363, 5364, 5365, 5366, 5367, 5368, 5369, 5370, 5371, 5372, 5373, 5374, 5375, 5376, 5377, 5379, 5380, 5381, 5382 Manufacturer: Haulotte Model: H16TPX Year of build: 2014 Condition: Used Data: Max. working height: 15,70 m Max. platform height: 13,70 m Max. reach: 12,50 m Drive type: Diesel Total dimensions LxWxH: 8,40 x 2,26 x 2,24 m Length of transport position: 6,60 m Height transport position: 2,50 m Track widining: 0 m Platform dimensions LxW: 1,81 x 0,78 m Max. basket load: 230 kg Swivel range: 360° Overhang: 0,88 m Movable up to working height: 15,70 m Max. Pitch angle: 50 % Wheel pressure (Support pressure): 41 kN Ground clearance: 0,25 m Own weight: 6.600 kg Special features: Rotatable work basket, basket arm/vertical rotation angle 140°, all-wheel drive, differential lock, permanently installed soot filter.Prikaži više

GS Arbeitsbühnen GmbH

Jagenbergstraße 21 41468 Neuss Nordrhein-Westfalen Nemačka
