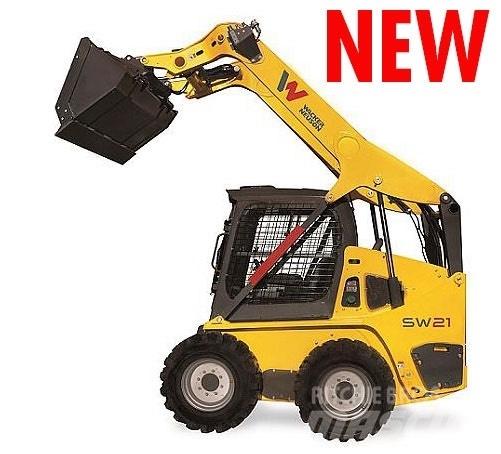

Wacker Neuson SW21

BASE MODEL W/ ADDED FACTORY INSTALLED OPTIONS: • AC04 - HYDRAULIC COUPLER • CB05 - CAB TYPE ENCLOSED - HEAT & AC • CP04 - SELECTABLE EH JOYSTICK CONTROLS • DS02 - 2-SPEED DRIVE 8-12MPH • FS01 - FAN VARIABLE SPEED COOLING • FT14 - ONE-WAY HYDRAULIC BUCKET LEVELING • FT17 - RIDE CONTROL • ST01 - SEAT MECHANICIAL SUSPENSION • 1000365245 - DELUXE TELEMATICS SW21 Base Skid Steer Information: Operating Data: • Height Top Of ROPS: 81.5" • Overall length w/ bucket: 134.9" • Overall length w/o bucket: 106.6" • Operating weight: 6,512 lb. • Height Hinge Pin Max: 124" • Rated Operating Capacity 50%: 2,100 lb. • Dump reach: 34.1" • Dump height max. at max height: 96.5" • Angle of departure: 24° • Tipping angle (Bucket dump) w/bucket at max height: 42° • Ground clearance: 7.6" • Breakout force max. - Bucket: 5,300 lbf • Breakout force max. - Boom: 5,000 lbf • Width: 65.9" Engine / Motor: • Engine / Motor manufacturer: Kohler • Engine / Motor: KDI 2504 TCR • Engine performance: 74 hp • Fuel tank capacity: 32.8 gal. • Hydraulic System: • Auxiliary Hydraulics - Standard Flow: 20 gpm • Auxiliary Hydraulics - High Flow: 30 gpm • Hydraulic oil tank: 2.9 gal. Power Transmission: • Travel speed: 8 mph (low), 12 mph (high) • Standard tires: 10" x 16.5" Standard Components: • Vertical Lift Arm • 74.3 HP Kohler Tier IV Final diesel engine with maintenance-free after treatment • ROP’s / FOP’s Level 1 Canopy with Side Screens • Mechanical Hand-Foot Controls • 10" x 16.5" All-Terrain Tires • 20.1 gal./min. Auxiliary flow • 2" Seat Belt • 3" Single Color Display • 2 Front single beam working lights • 2 Rear working lights
