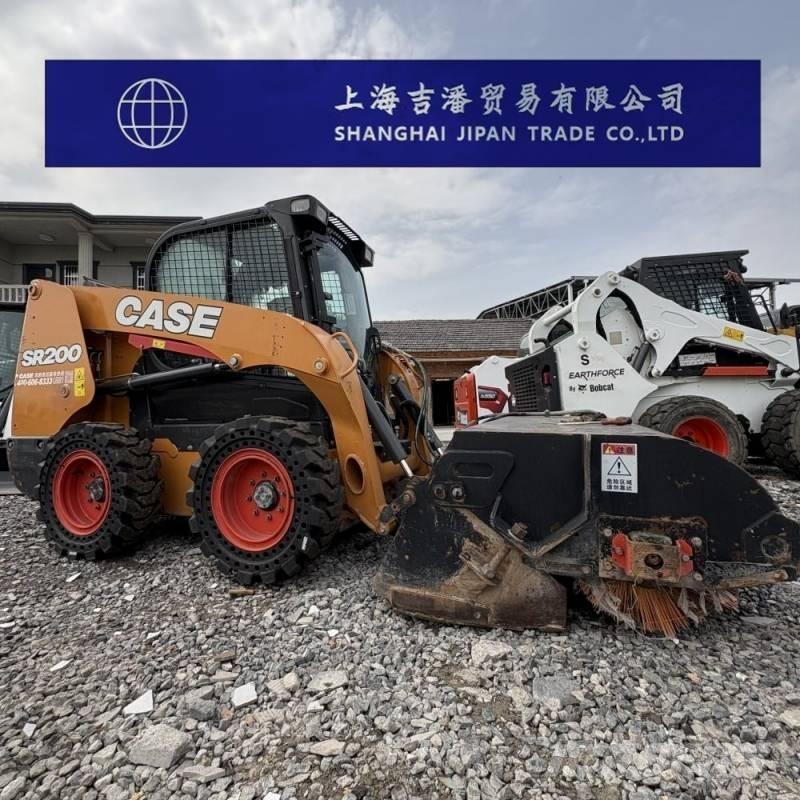

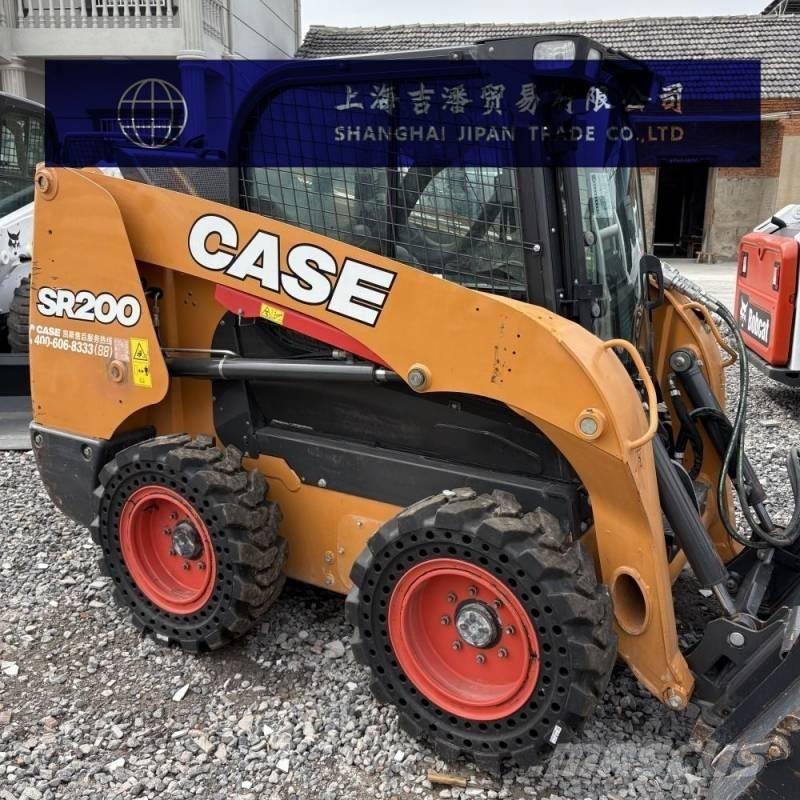

Case SR 200

We're from Shanghai Jipan Trade Co.,Ltd.I'm the Sales Manager, specializing in selling used machines from various brands, including excavators,truck mounted cranes,crawler cranes,and so on.With extensive export experience, our machines are sold well in Europe, America, Africa,and other regions, receiving rave reviews and a high repurchase rate. We uphold the principles of integrity and quality, and have a professional service team to provide you with one-stop service, ensuring accurate, efficient, and safe delivery of your machines.We are committed to building long-term relationships with every customer from around the world with competitive prices and superior quality. Contact: Jason WhatsApp/Mobile:0086 13675656717 WeChat:+86 13675656717 Shipping Method: Container Vessel, Bulk Carrier, Flatbed Vessel, or RoRo Vessel.If you don't have your own shipping agent, we can ship on your behalf and offer you the lowest possible shipping rates.

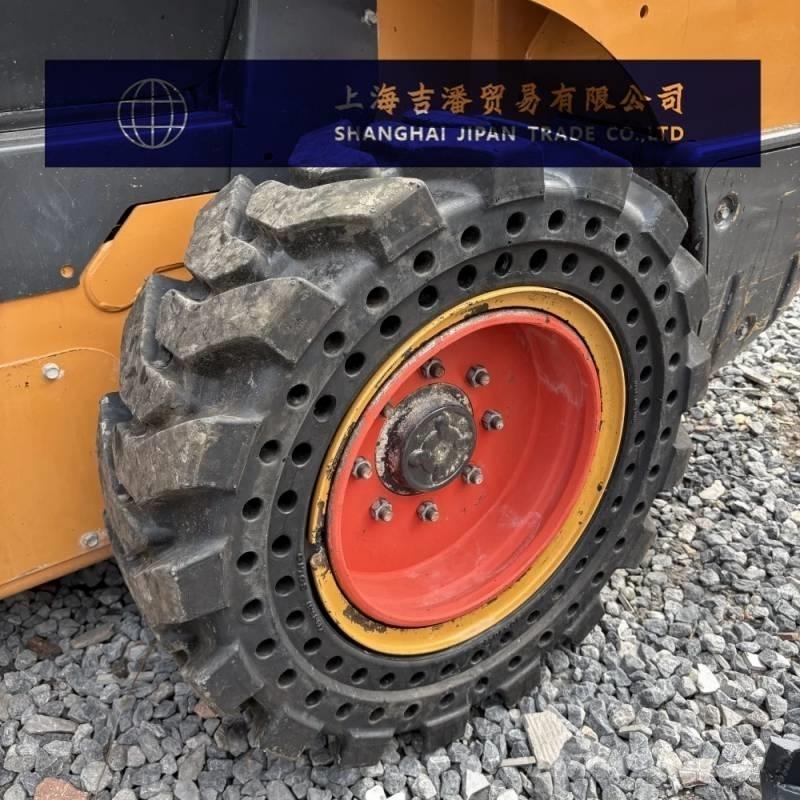

Parameter configuration of Case SR200 skid steer loader Basic performance Rated loading capacity (kg):952 Overturning load (kg)1905 The overall weight of the machine (kg) is 3,212 The form of the lifting mechanism is radial lifting Bucket lifting force (N)31.8 Load capacity (ton):0.8-1 ton Engine Engine model: Case 432T/M3 Rated power (kw/rpm):74/2500 Maximum torque (N.m)275/1400 Displacement (L)3.2 Number of cylinders:4 Through performance Maximum driving speed (km/h):11.6 Tire size:10*16.5 Departure Angle:25° Hydraulic system System safety pressure (bar)210 System rated flow rate (L/min):85 Oil capacity Fuel tank (L):75.5 Scope of work Maximum unloading height (mm):2500 Unloading distance (at the maximum height) (mm)520 The maximum height (mm) of the bucket hinge pin is 3120 Overall machine specification Total length (with bucket) (mm):3400 Total length (without accessories) (mm):2670 Full width (tire edge) (mm)1627 Full height (up to the top of the cab) (mm)2000 Wheelbase (mm):1130 Minimum ground clearance (mm):200 Full width (bucket edge) (mm):1829
