3 Kare ECOSPRAY

Cena bez PDV-a

Compnay LOGO
Images6
3 Kare ECOSPRAY Ostalo
3 Kare ECOSPRAY Ostalo
3 Kare ECOSPRAY Ostalo
FavoriteOmiljeno
shareDio
Save searchSačuvaj pretragu
Štampaj

INFO

Grupa proizvoda
Ostalo
Brend/Model
3 Kare ECOSPRAY
Godište proizvodnje
2021
Dodatne opcije
Restauriran
Lokacija Mašine
Kyiv, Київська область
Zemalja
Ukrajina
Mascus ID
211EDF30

CENA

Izaberi valutu:

DETALJI

Ostale informacije

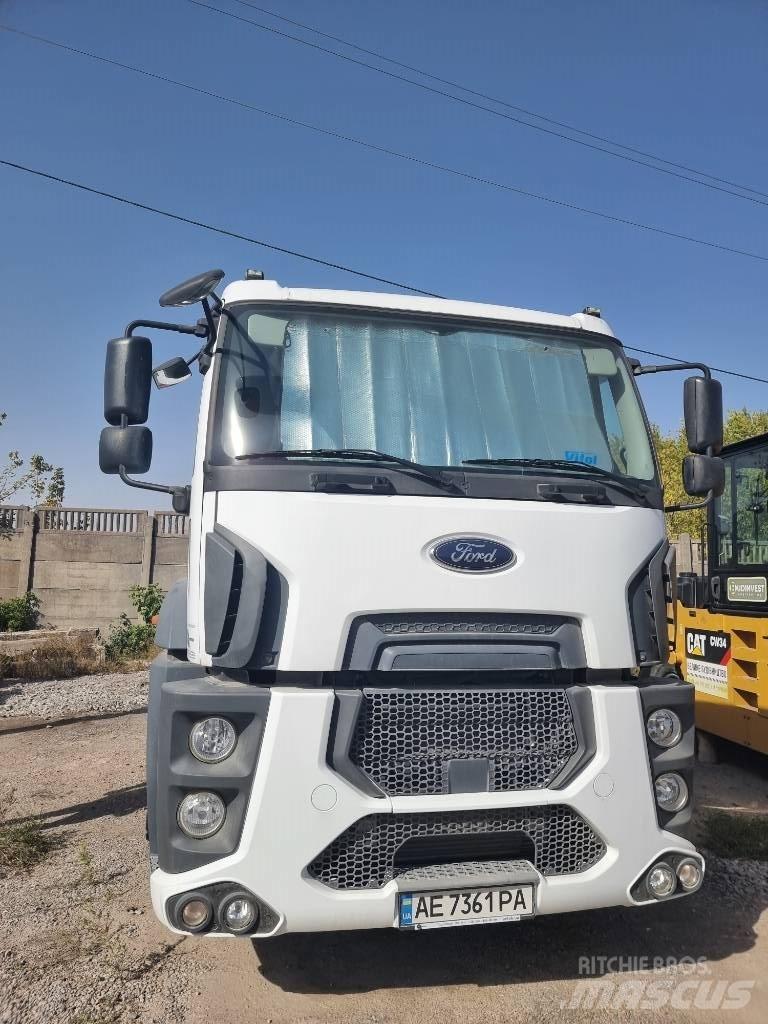

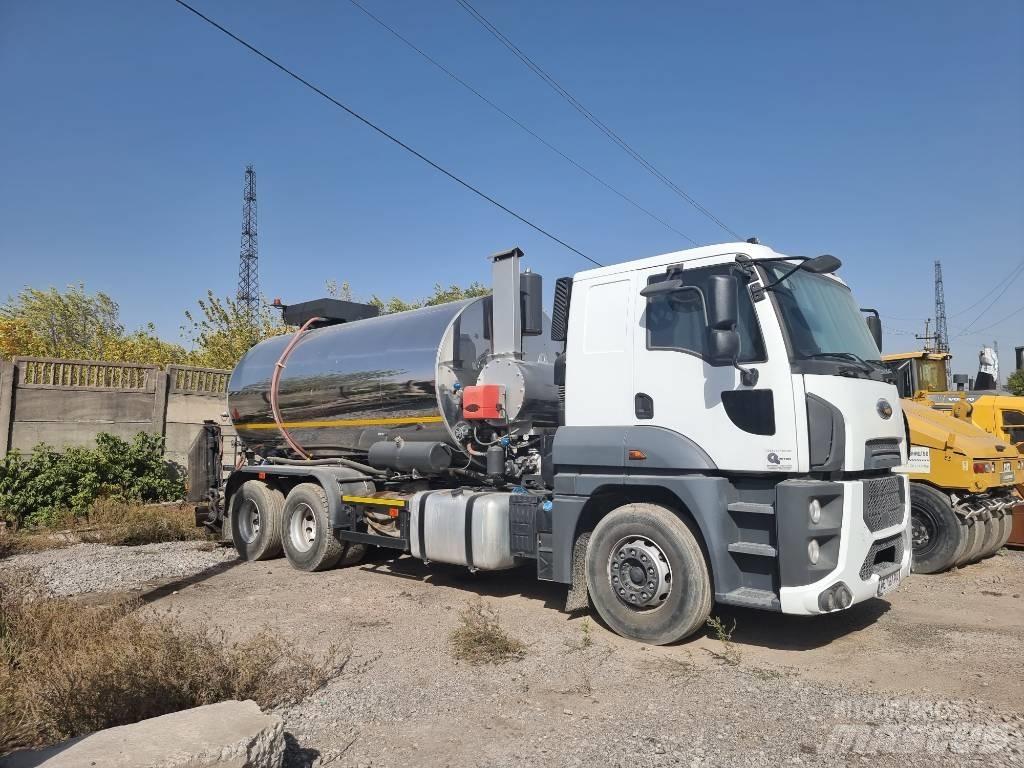

ECOSPRAY14 ASPHALT SPRAYER Ford Truck 2533 LR 2021 MODEL 34250 км Tank: 14 m³ Spray Bar Length: 4.8 m Heated by thermal oil Automatically controlled Sprayer Tanker Main Features: • 14.000 lt capacity according to chassis and capacity of the truck. • Thermal oil heated with a diesel burner. • 85000-110000 Kcal/h thermal oil heater • Spraying capacity control via automatic control system. • Perfect accuracy of spraying quantity with full balanced circulation of spray bar. 1) TANK Quantity : 1 Capacity : 14.000 lt Walls steel plate thickness : 5 mm Body steel plate thickness : 4 mm Feet steel plate thickness : 5 mm Isolation : 50 mm rock wool, covered with 1 mm stainless steel # of surge plates : 2 2) HEATING SYSTEM Circulating oil : Heat transfer oil Circulation pump : Centrifugal Type Circulation pump motor : 1,5 kw 3000 rpm Burner : BALTUR Fuel Type : Diesel Heating flame pipe : 1 ½” Control system : Analogue thermostatic control Hot Oil Heating Unit : Bitumen tank, bitumen pump, spray bars and circulation system 3) HYDRAULIC POWER TRANSMISION & CONTROL SYSTEM Hydraulic pump : LINDE 55 cc proportional hydraulic pump Bitumen pump hydraulic motor : LINDE 35 cc piston type Hydraulic Valve : Proportional electrically controlled Drive : via PTO on driveline of truck transmission 4) BITUMEN PUMP Type : Helical gear type thermal oil jacketed bitumen pump Speed Control : Digital Operator panel display ( lt/min ) Maximum pressure : 10 bar Control system : Automatic controls from driver cabin 5) SPRAY BAR & CIRCULATION SYSTEM Type : Square cross section with double compartment for perfect circulation Standard Width : 3.600 mm Main Bar width : 2.400 mm ( 600 mm 4 pcs ) Left Bar (max.) : 600 mm ( 600 mm 1 pcs ) Right Bar (max.) : 600 mm ( 600 mm 1 pcs ) Bar control system : Pneumatic controls from driver cabin Nozzle Valve control system : Pneumatic controls from driver cabin Nozzle types : 1 Set for Emulsion, 1 Set For Bitumen & PMB Control system : Digital Operator panel display ( lt/m² ) 6) OPERATOR PANEL Type : Specially developed automatic control system. Speed Control : Via Speed control radar Control system : From driver cabin LCD Screen : Vehicle speed (m / min), Sprayed distance (m), Pump Capacity (l / min), Sprayed capacity (lt/m2) 7) PRESSURIZED AIR Pressurized air supply : Truck compressor 8) REAR CONTROL PANEL Type : Manual control 9) ACCESSORIES & OTHER EQUIPMENTS 5.5 kW generator set w/ spare parts 1 set of spray nozzles for bitumen spraying 6mt length bitumen transfer flexible pipe. 6 kg fire extinguisher cylinder. No.1 head lights for rear side for night operations. Rotary warning lightPrikaži više

ООО "Итал-Машинери"

ул. Осенняя, 33, 3 секция, офис 706 НП №54 03164 Киев Киевская область Ukrajina
