SINTO 0X05-200

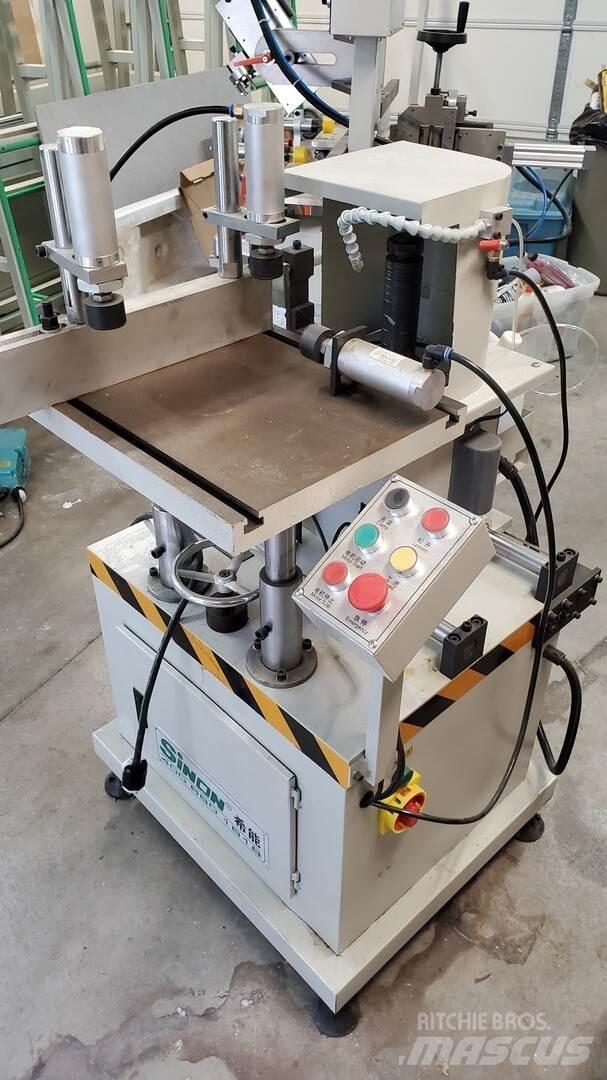

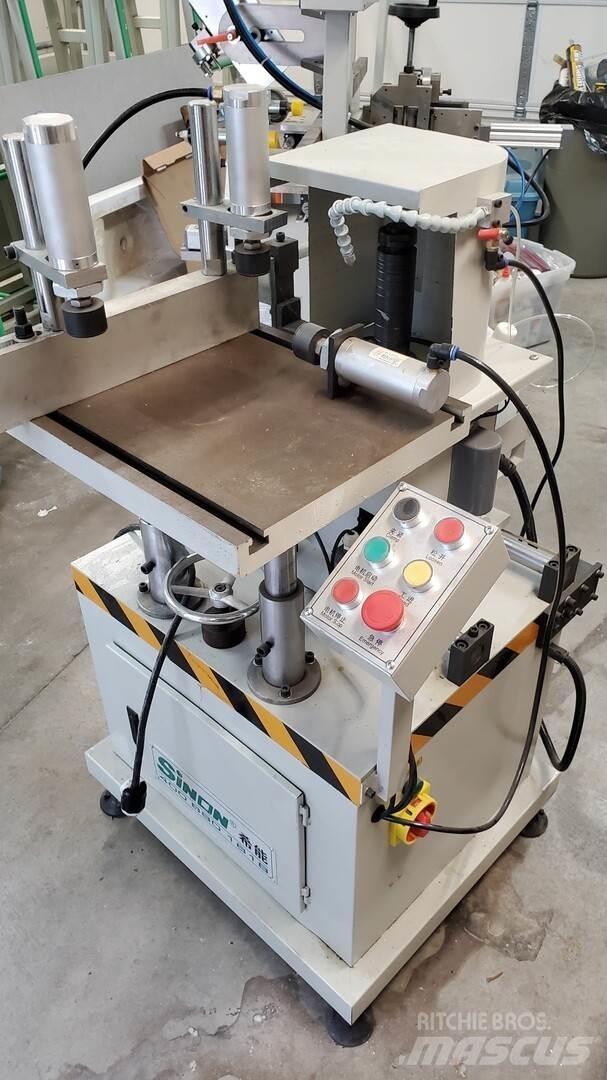

0X05-200 CNC Corner Cleaning Machine Title: 0X05-200 CNC Corner Cleaning Machine SKU: 30239 Model: 0X05-200 Condition: Used Dimensions: 68.00 (H) x 64.00 (W) x 44.00 (L) inches Cleaning / milling the welding tumor / slag on the exterior corners of the doors & windows frames & sashes. Electro-pneumatic driven machine - 240V Features: Professional used in cleaning the welding tumor in 90°corner of external for window frame and sash, the upper and lower of profile. It has multi-function such as vertical milling, saw milling and broaching and so on. Two-axis CNC cleaning the corner of processing flow controlling make the operation is easy. Adopts industry grade computer system, closed-loop controlling, ensures high precision. Interface in figures and diagrams which can display directly the moving trace of the cutter. It is simple, direct-viewing with the demonstrating program function, can set two-dimension processing programming by CNC controller Technical Specifications Working Air Pressure: 0.5~0.8 MPa Air Consumption: 200 L/min Diameter of Milling Cutter: 200 mm Principal Axis Rotate Speed: 2800 r/min Processing Profile Height: 30~120 mm Processing Profile Width: 30~110 mm
