SCM minimax cu 300s
Cena bez PDV-a
Štampaj
INFO
Grupa proizvoda
Ostalo za građevinarstvo
Brend/Model
SCM minimax cu 300s
Dodatne opcije
Polovna
Lokacija Mašine
Langley, British Columbia
Zemalja
Kanada
Mascus ID
35A19B6F
CENA
Izaberi valutu:
DETALJI
Broj internog magacina
131311
Ostale informacije
minimax cu 300c Universal Combo Machine - 5.5' Slider
Title: minimax cu 300c Universal Combo Machine - 5.5' Slider
SKU: 131311
Model: minimax cu 300s
Condition: New
Dimensions: 46.00 (H) x 63.00 (W) x 163.00 (L) inches
** Combination machine of Planer, Jointer, Saw, Router

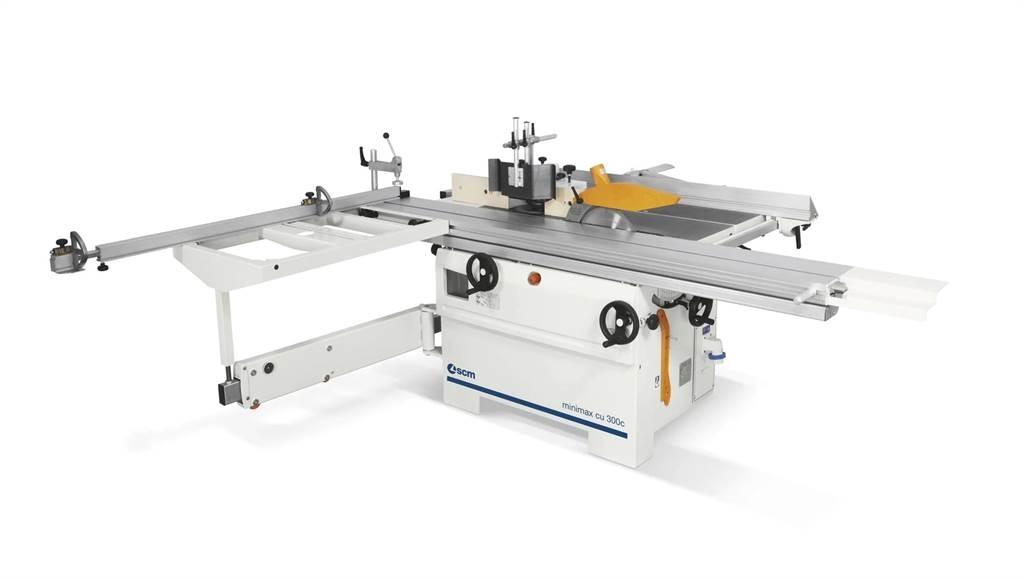

**Picture is of cu 300c (8.5 ft max. squaring stroke) cu 300s has a 5.5 ft max. squaring stroke
Planer
"Tersa" cutterblock" 72 mm diameter with 3 knives with rapid locking system
Max. Stock Removal: 4 mm
Surfacing Tables Total Length: 1510 mm
Thicknessing Table Dimensions: 585 x 300 mm
Feed Speed on Thicknesser (m/min): 7
Min./Max. Working Height on Thicknesser: 3/230 mm
Circular Saw
Cast Iron Saw-Spindle Moulder Worktable Dimensions: 1115 x 335 mm
Blades Tilting: 90o / 45o
Max. Saw Blade Projection from Table at 90o / 45o: 100 / 78 mm
Max. Squaring Stroke: 1600 mm // 5.5 ft
Cutting Width on Parallel Fence: 820 mm
"DADO SET" capability
Mechanical presetting to use a tool (not included) in place of the main blade.
- Max. diameter: 200mm / 8"
- Max. thickness: 19 mm / 0.75"
This machine is suppled with saw spindle, 5/8" diameter
Spindle Moulder
Available with the Following Spindle Diameters: 30, 32, 35, 40, 50 mm, 3/4", 1", 1-1/4"
Max. Useful Spindle Length: 100 mm (70 mm with 3/4" spindle)
Spindle Moulder Speeds ... 50 Hz: 3500 / 7000 / 10,000 rpm
Max. Tool Diameter when Profiling: 210 mm
Max. Diameter of Tool Lowered Under the Table at 90o: 180 mm
Belt driven scoring unit complete with blade
Adjustment from the machine outside without need of tools
Scoring Blade Technical Features:
- External Diameter: 80 mm
- Internal Diameter: 20 mm
- Z 12
- Rotation Speed: 7700 rpm
Professional Fences
Complete with:
- Saw Fence with quick loading device and micrometric adjustment
- Surfacing fence with 90o / 45o continuously adjustment
Cast Iron Mortiser
Complete with 120 mm diam. exhaust hood and 16 mm chuck
- Table Dimensions: 470 x 230 mm
- Strokes: X = 160 mm, Y = 120 mm, Z = 110 mm
Additional Features
- Exhaust Outlets Diameter: 120 mm
- Additional table on the sliding table for the support of panels with large dimensions
- 2 extra handwheels for the operating units movement
- Handwheel with gravitational numerical readout for the thicknessing table positioning
- Interchangeable spindle: 100 mm max. height (70 mm if 3/4" spindle)
- Spindle moulder shaft of 1-1/4"
- Reverse spindle rotation (non CE)
- Wheels for machine movement
- Locking by countersunk socket screw
- Triple wall for 2600 mm sliding table
- Machine language: English
[PDF Brochure](... is for 'cu 300c' model, difference is the max. squaring stroke - 8.5 ft on 'cu 300c' & 5.5 ft on 'cu 300s')
Lenmark Industries Ltd
27576 51a Ave V4W 4A9 Langley British Columbia Kanada
