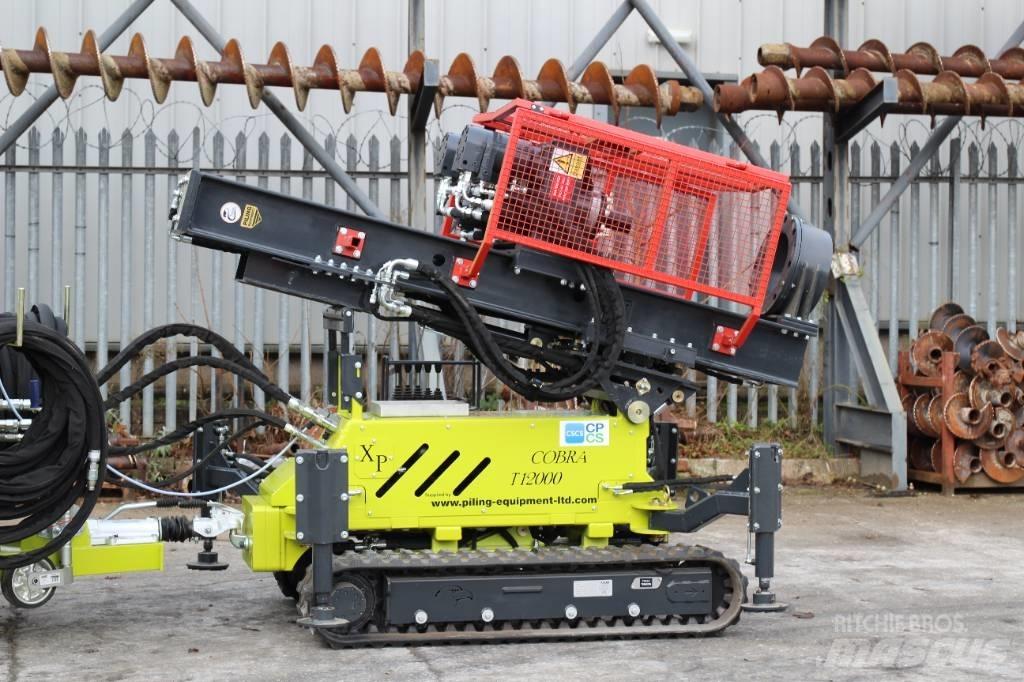

Cobra T12000 XP

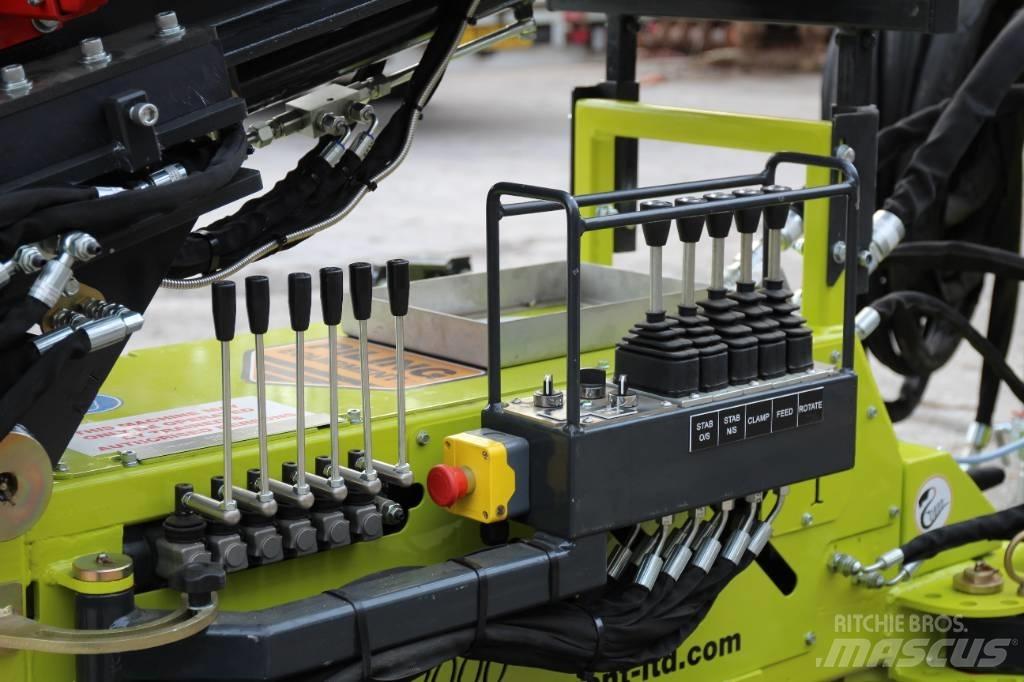

Hydraulic Mini Piling Rig Maximum Torque: 12000Nm Plus Extraction Force: 4.5 T Four speed rotary gearbox 22rpm 12000Nm, 32rpm 9000nm, 43rpm 6000Nm, 58rpm 5000Nm Mast Type: Chain / Ram Feed Stroke: 2010mm Max. Diameter: 350mm Mast Angle: -5 +90 Mast side tilt of 7 degrees Expandable Track Base 780mm min 1200mm max 2 speed tracking 2.5 km / 5 km 250mm, 300mm, 350mm, auger guide rings Detachable safety gates with kill switch to HSE standards Hydraulic controls mounted to a swing out control arm Four Hydraulic Stabilizer Legs Basic Weight : 2,050kg Site Towable Power Pack Engine: Hatz 4H50 TICD Super Silent (Fulfils US EPA Tier 4 final / EU Stage V) Max. output / torque [kW@rpm] 55 @ 2300–3000 / [Nm@rpm] 240 @ 1600–2100 Hydraulic pumps 110ltr / 32ltr, 180 bar 25m Hydraulic hose extension set Power Pack Weight: 1,200kg Total weight: 3,250kg
