Vahva FORTI 200

Cena bez PDV-a

Compnay LOGO
Images6Videos1
Vahva FORTI 200 Rotatori za građevinarstvo
Vahva FORTI 200 Rotatori za građevinarstvo
FavoriteOmiljeno
shareDio
Save searchSačuvaj pretragu
Štampaj

INFO

Grupa proizvoda
Rotatori za građevinarstvo
Brend/Model
Vahva FORTI 200
Godište proizvodnje
2015
Dodatne opcije
Eks izložbeni model
Lokacija Mašine
Saue
Zemalja
Estonija
Opšta ocena
1
2
3
4
5
Mascus ID
24BE0111

CENA

Izaberi valutu:

DETALJI

Broj internog magacina
VR50000
Evidencija svih servisa
Da
Odgovara sledećim mašinama
a mechanical rototilt designed for excavators from 13 to 20 tonnes, can be fitted to stick with pin diameter 80 mm, distance between pins (pin spread) 485 mm, face spread (stick width) 335 mm (JCB).

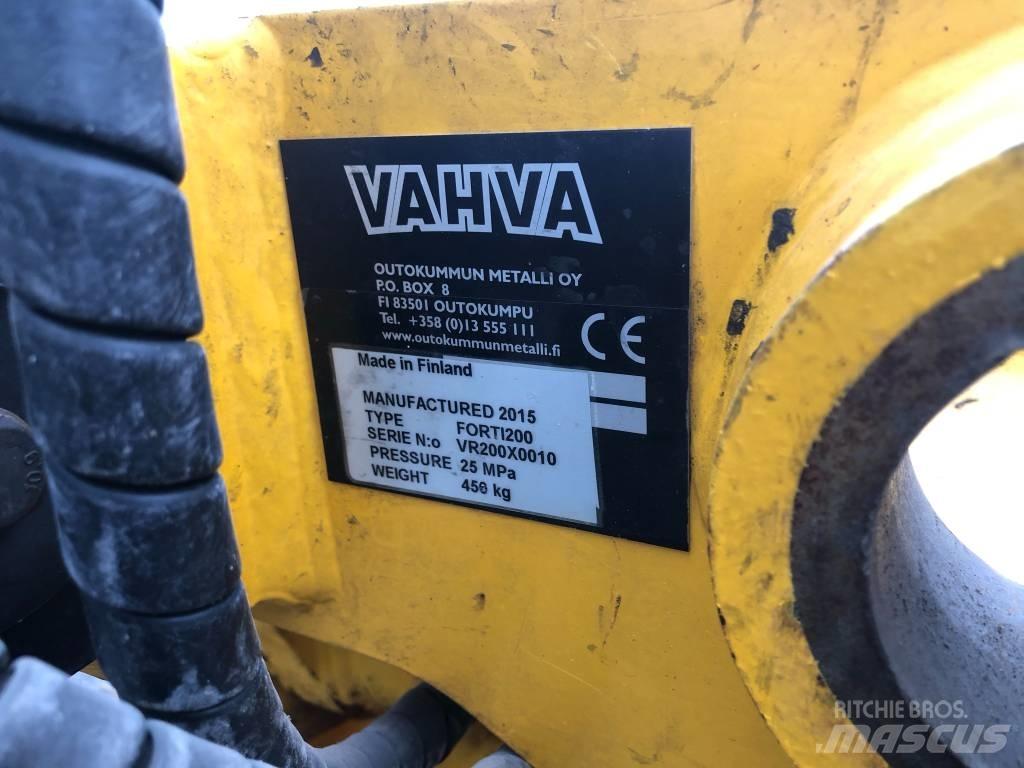

Proizvodnja/Serijski broj
VR200X0010
Radni pritisak
250 bar
Zahtevani hidraulični protok
80 l/min
Transportna težina
450 kg
Transportne dimenzije (DxŠxV)
990 x 720 x 280 mm
Zemlja proizvodnje
Finska
Uslovi isporuke
EXW
Certifikati
CE
Ostale informacije

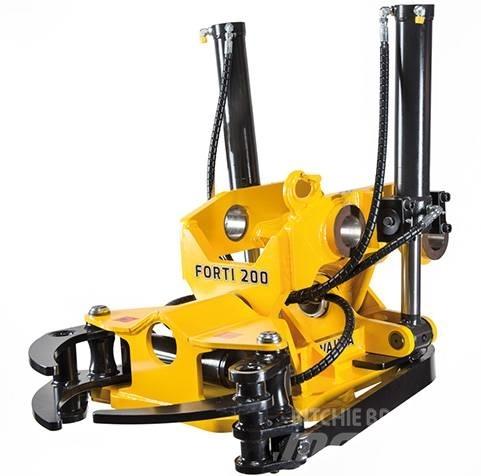

A new and cheaper alternative for tilt-rotator, features full hydraulic tilt and a manual rotation system, manufactured by Finnish company Vahva. The Vahva Forti 200 is a mechanical tilt-rotator designed for excavators from 13 to 20 tonnes. Like most tilt-rotators these days the bucket or attachment can be tilted hydraulically 45 degrees both ways. But it’s the rotation aspect which differs from conventional tilt-rotators, with no expensive gear drive or electrics involved in the build. The Forti 200 couples to the bucket or attachment by engaging with a conical disc, which is then tightened and locked in place by the gripper. When the operator wants to rotate his bucket to a desired position he simply loosens the grip slightly and manually pushes the bucket around before re-locking the mechanism. You can see the system in operation in this promotional video from Vahva. Maybe you would see this as a bit of a backward step with tilt-rotation systems, but surely it could appeal to those who are watching the pennies more closely and working on a tight budget maybe.Prikaži više
