Putzmeister M46-5

Cena bez PDV-a

Images58Videos1

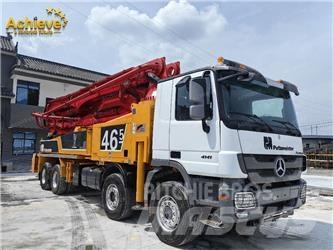

Putzmeister M46-5 Kamionske beton pumpe
Putzmeister M46-5 Kamionske beton pumpe
FavoriteOmiljeno
shareDio
Save searchSačuvaj pretragu
Štampaj

INFO

Grupa proizvoda
Kamionske beton pumpe
Brend/Model
Putzmeister M46-5
Godište proizvodnje
2013
Sati korišćenja
3000 h
Dodatne opcije
Restauriran,Remontovano
Zemalja
Kina
Opšta ocena
1
2
3
4
5
Mascus ID
FF862F64

CENA

Izaberi valutu:

DETALJI

Broj internog magacina
AICPT016
Broj boom sekcija
5
Poslednja inspekcija
2024-09-26
Bruto težina
32000 kg
trajanje
300 cm
Maksimalni horizontalni dohvat
4110 cm
Maksimalni vertikalni domet
4610 cm
Tip pokreta
statični
Tip pumpe
Dizel
Snaga pumpe
300 kW
Transportne dimenzije (DxŠxV)
11850 x 2500 x 4000 mm
Klasa emisije
Stage V
Engine manufacturer
Ergonic3. EU Version
Tip pumpe
Klipna
Proizvodjač šasije
Mercedes Benz
Brend guma
Mercedes Benz
Uslovi isporuke
FOB, CIF
Certifikati
EPA, CE, TÜV
Dodatna oprema
Technical Details General Information Arms 5 Folding Type RZ-Folding Vertical Reach 46.1 m Horizontal Reach gross 41.1 m Horizontal Reach net 38 m Reach Depth 32.4 m Unfolding Height 11.1 m Slewing Range 365 degree End Hose - Length 3 m Delivery Line (DN, Pressure) DN125/5.5 / mm/bar Support width Standard (front-rear) 8.4 / 9.3 m Support width OSS (front-rear) 5.6 / 6.9 m Support width iSC (front/rear) 2.6-8.4 m Length x Width x Height 11.85 x 2.5 x 4 mm Total Weight (approx.) under 32000 kg Configuration Concrete Pump .19 iLS Concrete Pump .17 iLS Concrete Pump .16 H LS Concrete Pump .16 H Delivery Cylinder Diameter - Stroke Length 250/2100 mm Output (piston side) 190 m³/hr Delivery Pressure (piston side) 85 bar Strokes (piston side) 30
Ostale informacije
If you are looking for a lightweight, high performance machine on 4 axles — the truck-mounted concrete pump M47-5 is built for you. Weighing less than 32 t, the 47-5 is one of the lightest in its class and provides a more than sufficient payload reserve. It is ideal for application at medium to large sized sites as well as job sites that offer challenging setup situations. Different small support Options available: Europe: ISC with permanent check of permitted arm positions and working ranges Outside Europe: OSS (One Side Support) The new fully flexible outrigger together with the intuitive Ergonic 3.0 control gives you all the freedom you need when space on the construction site is tight again. Key Features Below 32 t total weight Smooth 5-section-boom with Roll Z-Folding TRDI-Support for compact support area, fast setting up, relieved framework and difficult setup situations (iSC and OSS, One Side Support optional) Efficient work with Ergonic 3.0 operating system ReducPrikaži više

Achieve Innovations

5F Building 4, No.28, (M) Fuyuan Road, Kaifu Dist 410003 Changsha Hunan 湖南 Kina
