Maksimalni kapacitet dizanja
100000 kg
Maksimalni kapacitet dizanja na kraju konzole
100000 kg
Maksimalna visina podizanja
2660 cm
Tip krana
Hidraulični strelac
Engine manufacturer
Get on TAD720VE TAD750VE Get off WP12.460N
Transportne dimenzije (DxŠxV)
1560030003.85 m
Ostale informacije

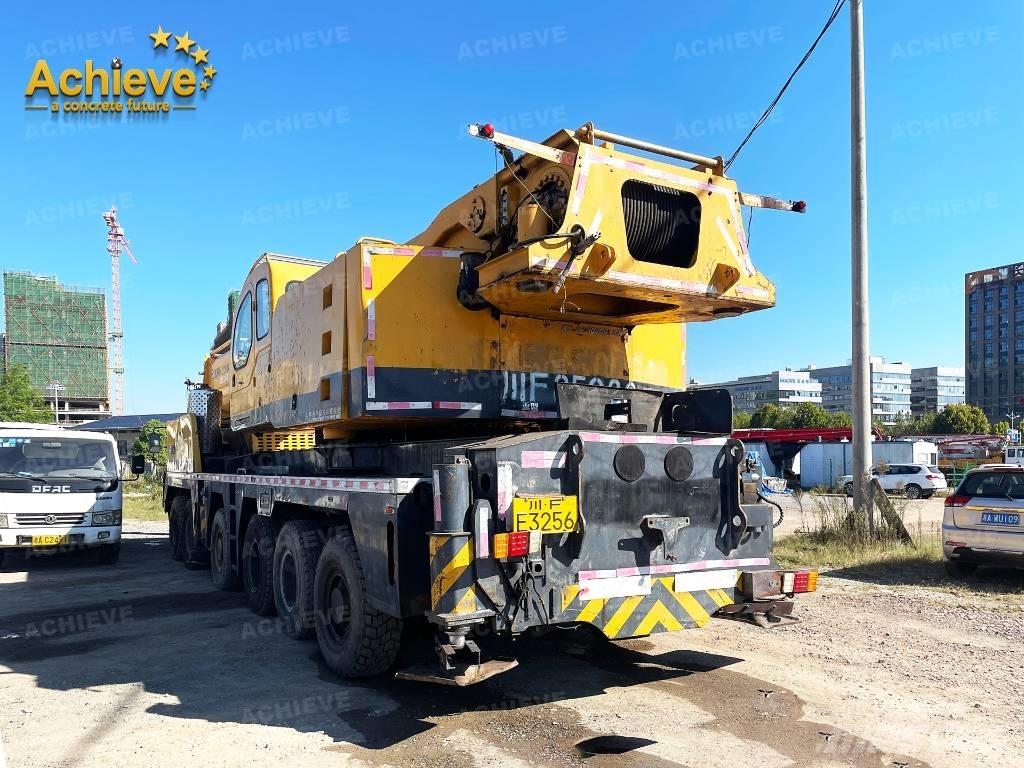

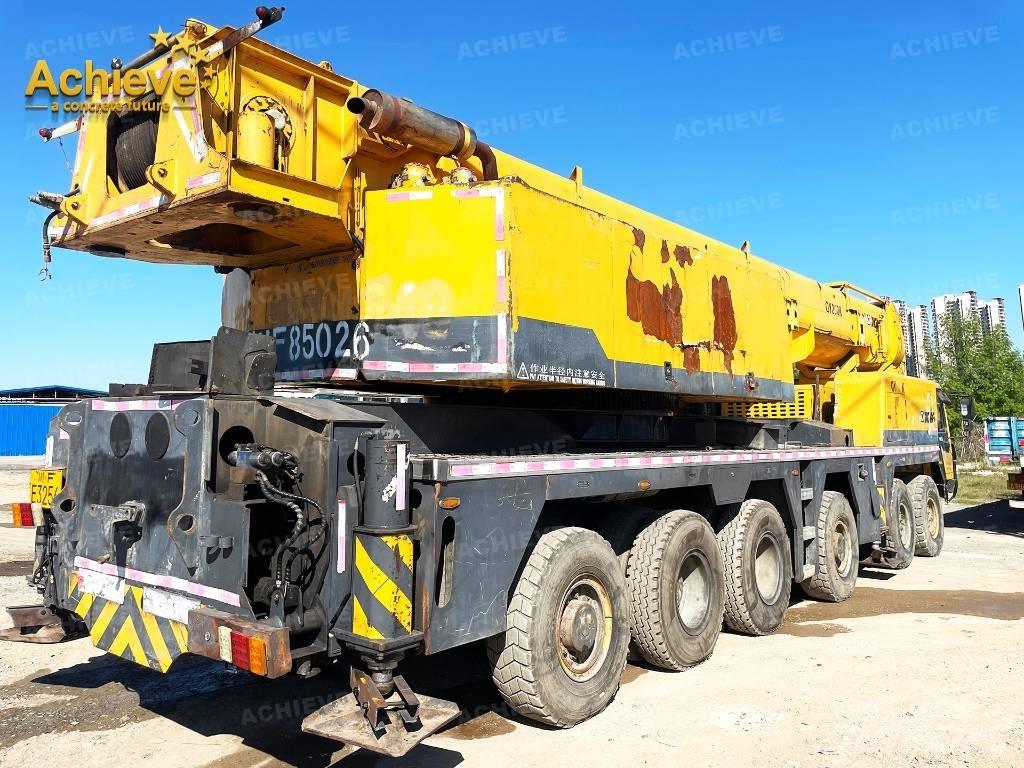

The eight-section "U-shaped" 82-meter main arm has a maximum lifting capacity of 100 tons; the lateral span of the H-shaped outriggers is 8.1 meters, and the full rectangular frame structure has a stronger load-bearing capacity and higher stability; the five-axle high-load truck crane chassis, three-axle drive, and three-axle steering, has strong power and flexible maneuverability.
* Engine rated power (kw/(r/min))
316/1900
* Maximum driving speed (km/h)
80
* Maximum climbing grade (%)
45
project
unit
parameter
Parameters
QY100K-I (Weichai)
Size parameters
Machine length
mm
15600
Full width
mm
3000
Overall height
mm
3850
Wheelbase
mm
1420+2420+1800+1420+1505
Wheelbase
mm
2610/2610/2610/2315/2315/2610
Weight parameters
Total mass in driving state
kg
54900
Axle load
kg
1 axis 8000/2 axis 8000/3 axis 7900/4 axis 12000/5 axis 12000/6 axis 7000
Power parameters
Engine Model
Get on TAD720VE TAD750VE Get off WP12.460N
Engine rated power
kw/(r/min)
Boarding 174/2300 181/2300 Alighting 338/1900
Rated engine torque
Nm/(r/min)
Boarding 854/1400 1050/1500 Alighting 2110/1000-1400
Driving parameters
Driving
Maximum driving speed
km/h
80
Minimum stable driving speed
km/h
0.5
Turning
Minimum turning diameter
m
twenty four
Minimum turning diameter of arm head
m
26.6
Maximum climbing grade
%
40
Minimum ground clearance
mm
300
Approach Angle
°
20
Departure angle
°
14
Braking distance
m
≤10
Fuel consumption per 100 km
L
70
Main performance parameters
Maximum rated total lifting weight
t
100
Minimum rated amplitude
m
3
Maximum lifting moment of basic arm
kN·m
3450
Turntable tail turning radius
mm
Balance weight 4200 Secondary roll 4590
Outriggers
Vertical
m
7.56
Horizontal
m
7.6
Maximum lifting height
Basic arm
m
13.5
Longest main boom
m
50.9
Longest main boom + jib
m
70.4
Boom length
Basic arm
m
13.5
Longest main boom
m
-
Longest main boom + jib
m
-
Longest main boom + jib + extension section
m
51+18.1+4
Working speed
Maximum rotation speed
r/min
2
Lifting speed
Main lifting mechanism
105
Auxiliary lifting mechanism
104
Boom extension time
Full extension
s
160
Full Zoom
160
Amplitude change time
Full arm lift
s
75
Full arm drop
s
-
Outrigger retraction
level
At the same time
s
25
At the same time
s
15
vertical
At the same time
s
-
At the same time
s
