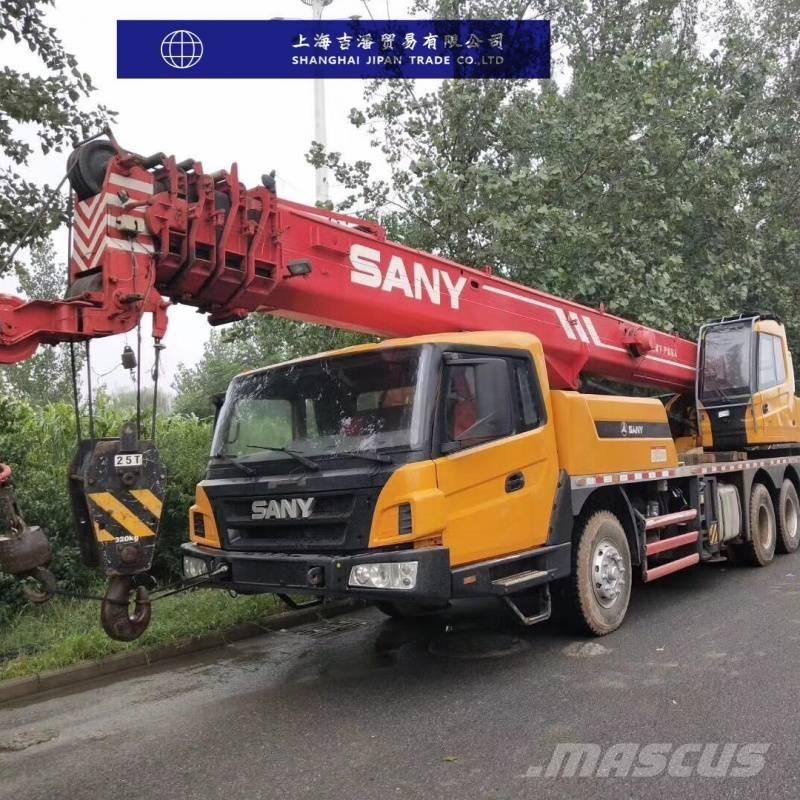

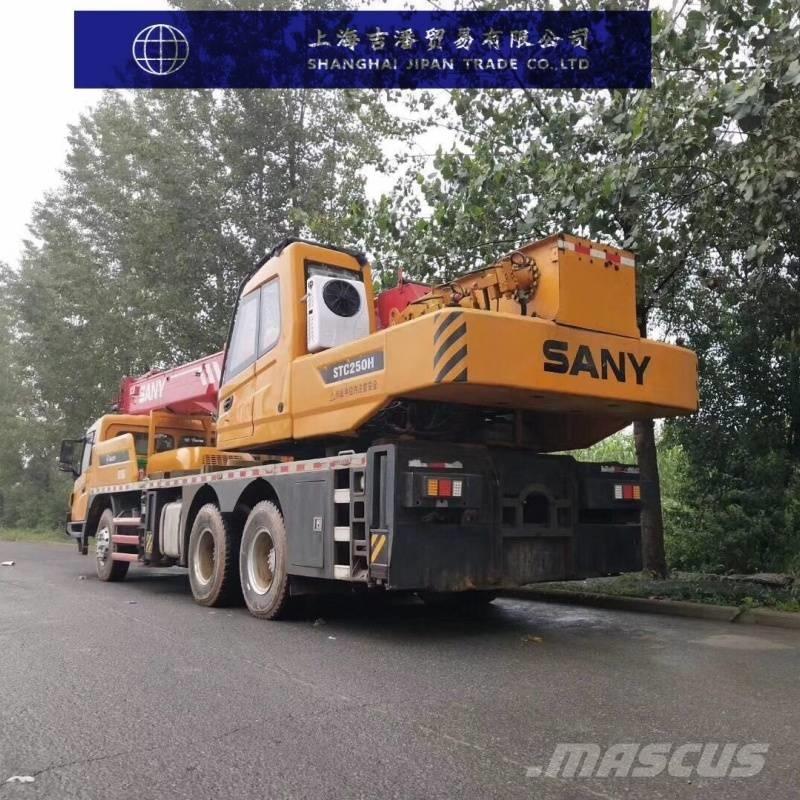

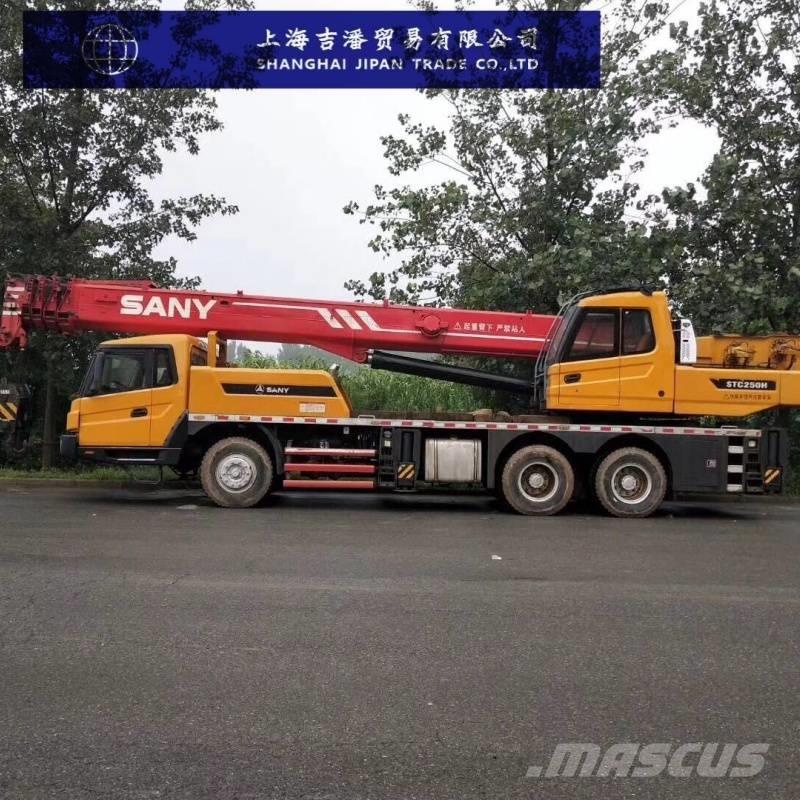

Sany STC 250 H

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Basic Parameters Model: STC250H Category: Truck Crane Rated Lifting Capacity: 25 tons Overall Dimensions: Length 12.7m, Width 2.49m, Height 3.46m Lifting Capacity Rated Lifting Moment: 980KN.m; Rated Lifting Moment (Full Extended Boom): 470KN.m Minimum Working Radius: 3m Maximum Lifting Height - Basic Boom: 11m Maximum Lifting Height - Full Extended Boom: 40m Maximum Lifting Height - Basic Boom + Jib: 48m Boom Length - Basic Boom: 10.5m Boom Length - Full Extended Boom: 39.5m Jib Length: 8m; Jib Installation Angle: 30 degrees Operating Speed Parameters Maximum Hoisting Speed of Main Winch: 125m/min Maximum Hoisting Speed of Auxiliary Winch: 125m/min Full Extension Time of Boom: No exact data available Boom Luffing Time: No exact data available Slewing Speed: ≥2.5r/min Engine Parameters Engine Model: Can be equipped with Dongfeng Cummins ISLe290 30, Weichai WP10.270, Shanghai Diesel SC8DK280Q3, SC8DK260Q3, etc. Rated Power: 206/2200kw/(r/min) Driving Parameters Maximum Travel Speed: 80km/h Minimum Turning Radius: No exact data available Maximum Climbing Gradient: 30% Approach Angle / Departure Angle: 16°/11° or 19°/11° Minimum Ground Clearance: No exact data available Outrigger Span Longitudinal × Transverse: 5300mm×6200mm Other Parameters Number of Axles: 3 Wheelbase: 4330+1350 Axle Load: 7000/26000 (tandem axle) Tire Specification: 11.00-20, 11.00R20 Drive / Steering: 6×4 Frame: Integral welded structure, optimized through design and repeated tests, made of high-strength steel plates Suspension System: Front suspension consists of leaf springs plus bidirectional acting telescopic shock absorbers; rear suspension consists of leaf springs plus balance beam structure Steering System: Single-circuit hydraulic power steering system with mechanical steering limit Brake System: Including service brake (operated by foot pedal, dual-circuit pneumatic brake), auxiliary brake (engine exhaust brake), emergency brake, and parking brake (hand brake) Electrical System: Adopts single-wire system with negative pole grounded, positive pole power control, and rated voltage of 24V Lower Vehicle Hydraulic System: Uses a fixed displacement gear pump to control the extension and retraction of horizontal and vertical outriggers Counterweight: 4.5t, fixed on the turntable by bolts
