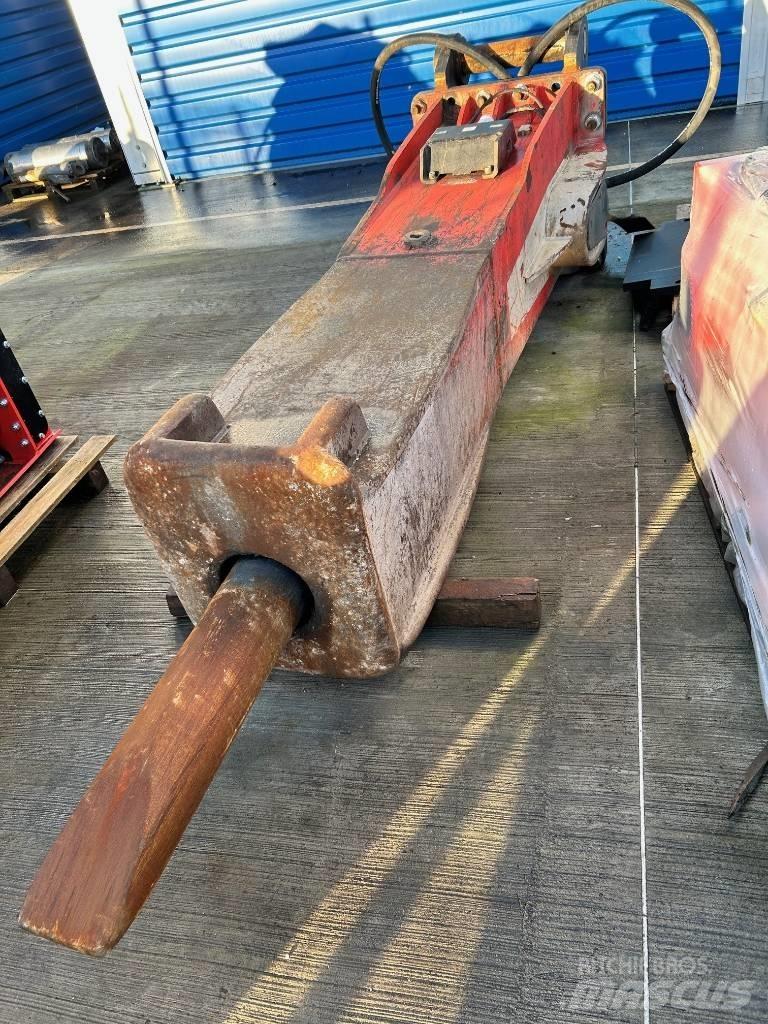

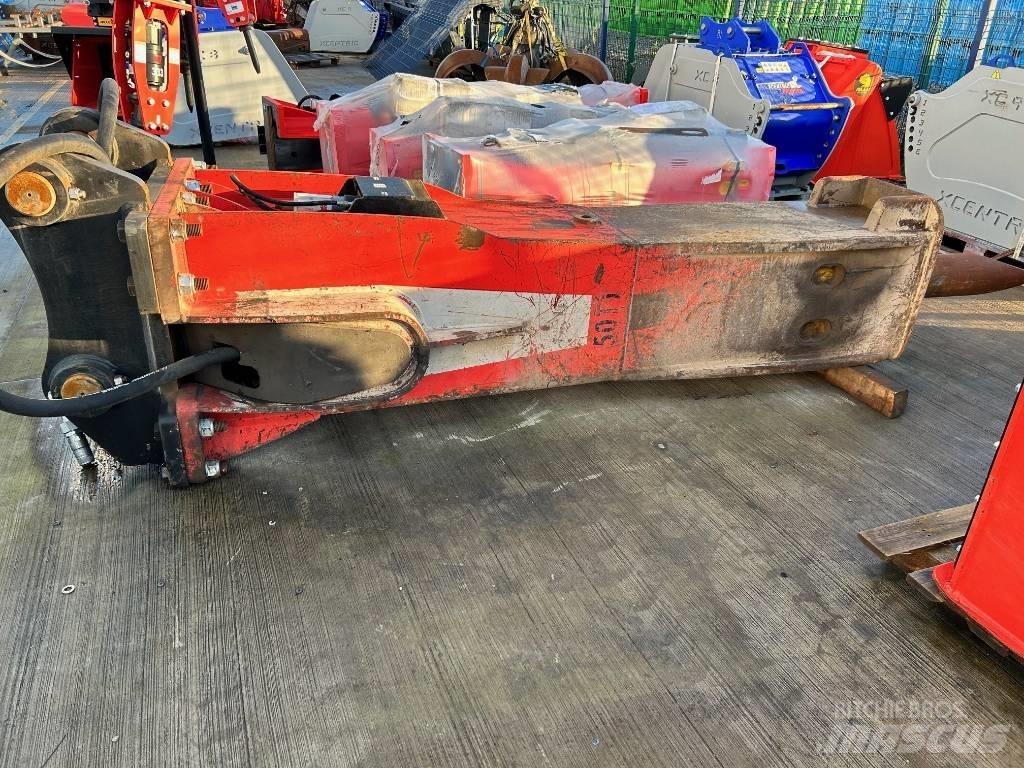

Rammer 5011 A

Cena bez PDV-a

Pitaj za cenu

Compnay LOGO
Images2Videos1
Rammer 5011 A Čekići
Rammer 5011 A Čekići
FavoriteOmiljeno
shareDio
Save searchSačuvaj pretragu
Štampaj

INFO

Grupa proizvoda
Čekići
Brend/Model
Rammer 5011 A
Godište proizvodnje
2017
Dodatne opcije
Mogućnost iznajmljivanja,Restauriran
Lokacija Mašine
Cheshire
Zemalja
Ujedinjeno Kraljevstvo
Opšta ocena
1
2
3
4
5
Mascus ID
B62D76D8

DETALJI

Poslednja inspekcija
2023-11-29
Transportna težina
3900 kg
Ostale informacije
Comes with Head Bracket and Hoses Recent Refurbishment SPECIFICATION Minimum working weight, flange mounted *1 4750 kg 10470 lb Weight 3900 kg 8600 lb Working length 3329 mm 131.1 in Impact rate, Long stroke 370 - 530 bpm Impact rate, Short stroke 450 - 620 bpm Operating pressure 160 - 170 bar 2320 - 2465 psi Oil flow range 280 - 380 l/min 74.0 - 100.4 gal/min Pressure relief setting *2 220 bar 3190 psi Pressure relief max 230 bar 3335 psi Back pressure max 10 bar 145 psi Input power 108 kW 145 hp Tool diameter 190 mm 7.48 in Pressure line connection (IN) SAE 6000 psi 1 1/2" Return line connection (OUT) SAE 6000 psi 1 1/2" Pressure line size, min. inner diameter 32 mm 1.26 in Return line size, min. inner diameter 32 mm 1.26 in Grease connection BSPP-internal 3/8" Air connection (A) BSPP-internal 3/8" Optimum oil temperature 40 - 60 °C 104 - 140 °F Allowed oil temperature range -20 - 80 °C -4 - 176 °F Optimum oil viscosity at operating temperature 30 - 60 cSt Allowed viscosity range 20 - 1000 cSt Carrier weight, optimum 45 - 69 t 99200 - 152100 lb Carrier weight, range *3 43 - 80 t 94800 - 176400 lb Noise level, measured (2000/14/EC) 122 dB(A) Noise level, guaranteed (2000/14/EC) 126 dB(A)Prikaži više

Blue Machinery ( Central )

New Cheshire Business Park, CW9 6GG Northwich Cheshire Ujedinjeno Kraljevstvo
