Shantui SD32

Cena bez PDV-a

Pitaj za cenu

Compnay LOGO
Images4

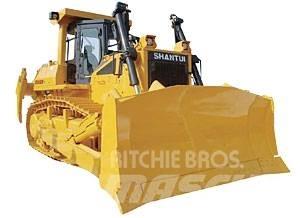

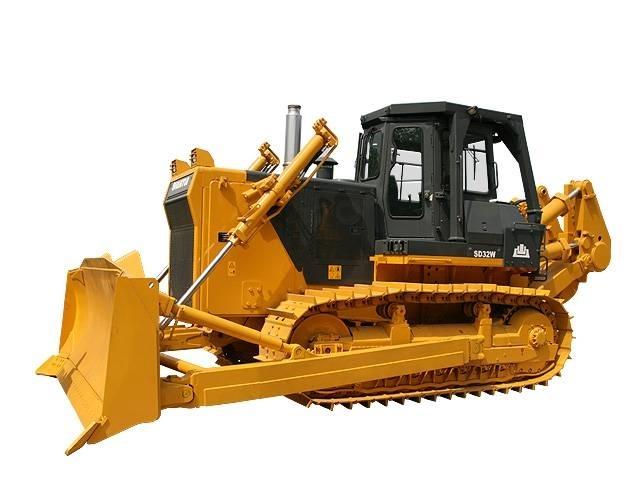

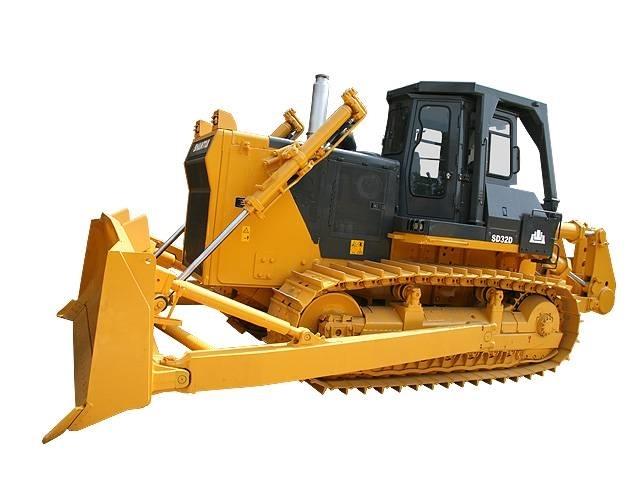

Shantui SD32 Buldožeri guseničari
Shantui SD32 Buldožeri guseničari
Shantui SD32 Buldožeri guseničari
FavoriteOmiljeno
shareDio
Save searchSačuvaj pretragu
Štampaj

INFO

Grupa proizvoda
Buldožeri guseničari
Brend/Model
Shantui SD32
Godište proizvodnje
2017
Dodatne opcije
Novo/nekorišćeno
Lokacija Mašine
Jining,Shandong
Zemalja
Kina
Opšta ocena
1
2
3
4
5
Mascus ID
4F058AF2

DETALJI

Evidencija svih servisa
Da
Bruto težina
37200 kg
Tip kabine
Zatvorena kabina
Klasa emisije
Stage II
Motor
NTAA855-C360S10
Snaga motora
232 kW (315 KS)
Mjenjač
SHANTUI
Transportne dimenzije (DxŠxV)
8560000 x 4130000 x 3640000 mm
Originalna boja
Yellow
Informacije o stanju/Garancija
yes
Zemlja proizvodnje
Kina
Uslovi isporuke
FOB, CFR, CIF, EXW
Dodatna oprema
Ripper
Dodatna oprema
Klima uredjaj
Air conditioner
Dokumenta
SD32 bulldozer parameters.docx
Ostale informacije
ITEM 　UNIT SD32 L×W×H (Ripper not included) mm 6880×4130×3725 Operating weight (Ripper not included) t 37.2 Engine - CumminsNTA855-C360S10 Rated power kW/rpm 235/2000 Gradeability ° 30 Blade type - Straight tilt bladeSemi-U bladeAngle blade Blade width mm Straight tilt blade 4130×1590Semi-U blade 4030×1720Angle blade 5000×1140 Dozing capacity m3 Straight tilt blade 10Semi-U blade 11.9Angle blade 6 Ma× drop below ground of blade mm 560 Lift height of blade mm 1560 Ripper type - Single ripperThree-shank ripper Ripping depth of ripper mm Single ripper 1250Three-shank ripper 842 Lifting height of ripper mm Single ripper 955Three-shank ripper 883 Number of carriers (each side) - 2 Number of track rollers (each side) - 7 Number of track shoes (each side) - 41 Width of track shoe mm 560 Track gauge mm 2140 Ground length and ground pressure mm/MPa 3150-0.105 Pitch mm 228.6 Forward speed km/h 0–3.6 0–6.6 0–11.5 Reverse speed km/h 0–4.4 0–7.8 0–13.5Prikaži više
