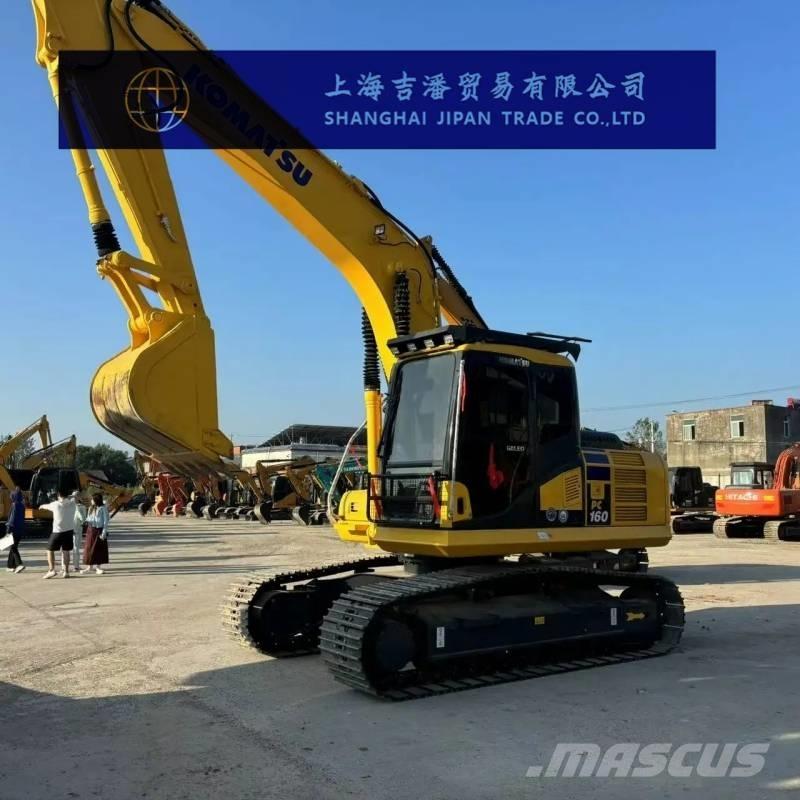

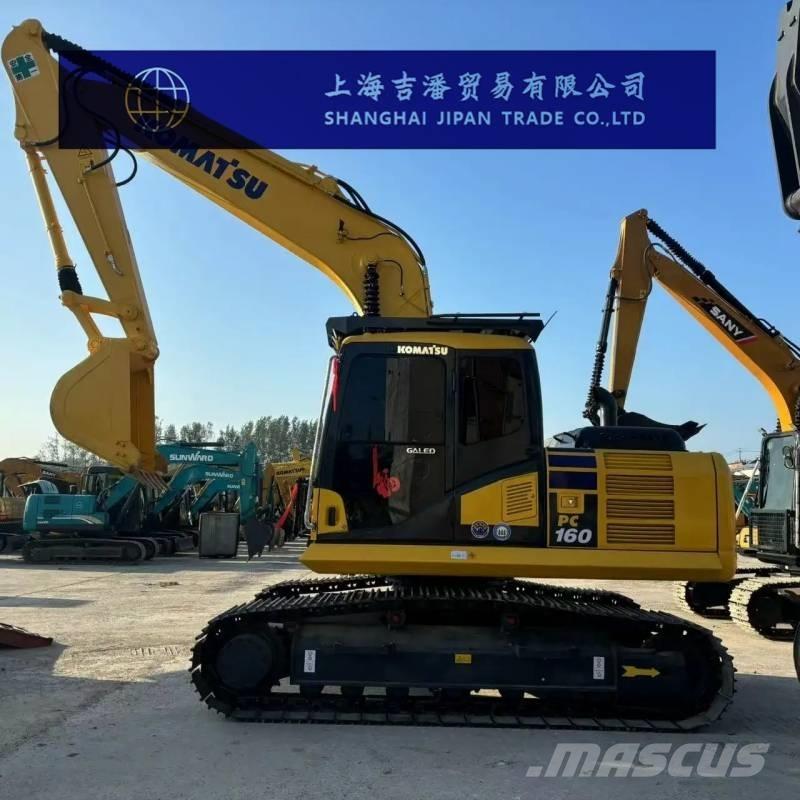

Komatsu PC 160 LC-8
Cena bez PDV-a
Štampaj
INFO
Grupa proizvoda
Bageri guseničari
Brend/Model
Komatsu PC 160 LC-8
Godište proizvodnje
2024
Sati korišćenja
780 h
Zemalja
Kina
Opšta ocena
1
2
3
4
5
Mascus ID
52A3CC8E
CENA
Izaberi valutu:
DETALJI
Broj internog magacina
1
Tip motora
Dizel
Proizvodnja/Serijski broj
1
Broj prethodnih vlasnika
1
Poslednja inspekcija
2025-08-25

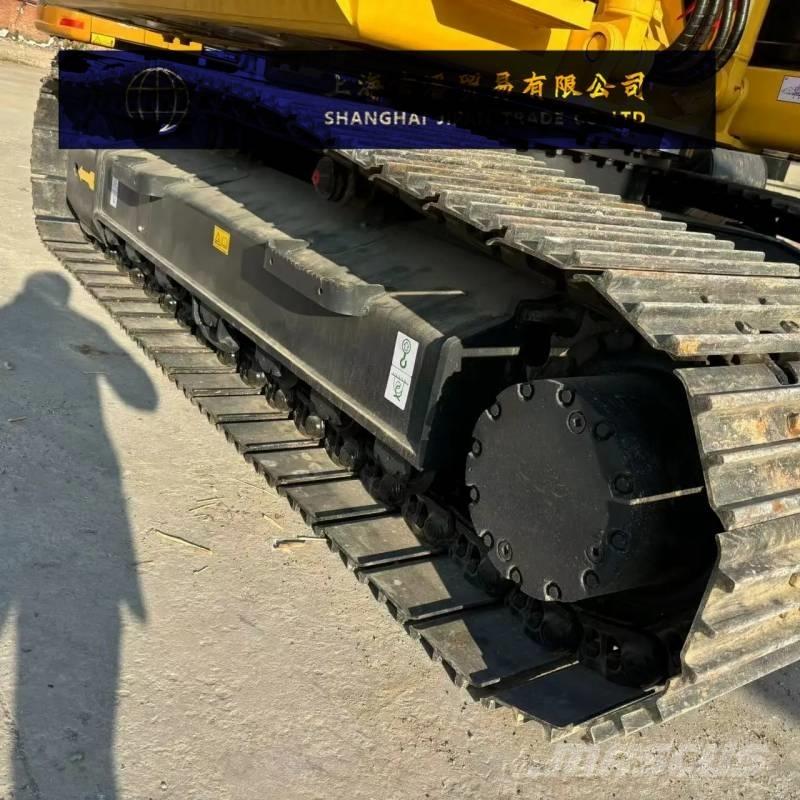

Stanje donjeg stroja
good condition
Motor
Original
Bruto težina
17140 kg
Snaga motora
85 kW (116 KS)
Engine manufacturer
Komatsu
Registarki broj
1
Klasa emisije
Stage V
Kapacitet prostora
0.65 m3
Širina trake
500 mm
Najveća brzina
5.50 km/h
Transportne dimenzije (DxŠxV)
8565 x 2490 x 3015 mm
Originalna boja
Yellow
Dužina štapa / dipera
2610 mm
Informacije o stanju/Garancija
1 year
Zemlja proizvodnje
Japan
Uslovi isporuke
FCA, FOB, CIF, EXW
Certifikati
EPA, CE
Dodatna oprema
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET
TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET
CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours:24 hours, holidays and Sundays
Contact: Lily
Whatsapp: +86 17756597429
Mobile:+86 17756597429
Wechat:17756597429
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Dodatna oprema
instalacija za čekić
ventil za blokiranje
Klima uredjaj
Predfilter motora
Rešetkasta kašika
rotirajući kljun
dodatna oprema
kontrola dzojstika
Standardna kašika za kopanje
Ostale informacije
Komatsu PC160LC-8 excavator parameter configuration
specification
Power: Traditional power
Joint ventures/imports
Bucket backhoe
Tonnage (tons) 16
The working weight of the whole machine (kg) is 16700-17140
Bucket capacity (m³) 0.65
Boom length (mm) 5150
Stick length (mm) 2610
performance
Rotation speed (rpm) 12
Travel speed (km/h) 3.4-5.5
Climbing ability (%) 70
Bucket digging force (kN) 122.6
Stick digging force (kN) 86.3
Maximum traction (kN) 156.4
dynamical system
Engine model Komatsu SAA4D107E-1
Rated power (kw/rpm) 85/2200
Displacement (L) 4.46
Number of cylinders (units) 4
Bore × stroke (mm) 107*124
Cooling method: Water cooling
Hydraulic system
Main pump type variable piston pump
The maximum flow rate of the main pump (l/min) is 312
Pilot oil circuit (MPa) 3.2
Working hydraulic oil circuit (Mpa) 34.8
Travel Hydraulic Circuit (Mpa) 37.3
Slewing hydraulic circuit (Mpa) 28.9
Boom cylinder - number × bore × stroke (mm) 2-110*1175
Bucket Cylinder - Number of Pieces× Bore × Stroke (mm) 1-120*1342
Bucket cylinder - number × bore × stroke (mm) 1-105*1027
Oil capacity
Fuel tank (L) 280
Hydraulic Tank (L) 190
Engine oil change volume (L) 17.9 (16)
Coolant (L) 18.5
Body size
Total length of transport (mm) 8565
Total Transport Width (mm) 2490
Total height of transport (mm) 3015
Track grounding length (mm) 3170
Total track length (mm) 3965
Track shoe width (mm) 500
Total Track Width (mm) 2490
Track gauge (mm) 1990
Minimum ground clearance (mm) 440
Counterweight ground clearance (mm) 1055
The minimum turning radius of the front working device (mm) is 2990
Rear end slewing radius (mm) 2390
Number of support wheels (unilateral) (pieces) 7
Number of support wheels (one side) (pcs) 2
Number of track shoes (single side) (pcs) 44
Scope of work
Maximum digging radius (mm) 8960
The maximum excavation radius of the stopping surface (mm) is 8800
Maximum digging depth (mm) 5960
Maximum digging height (mm) 8980
Maximum unloading height (mm) 6370
Maximum vertical digging depth (mm) 5040
