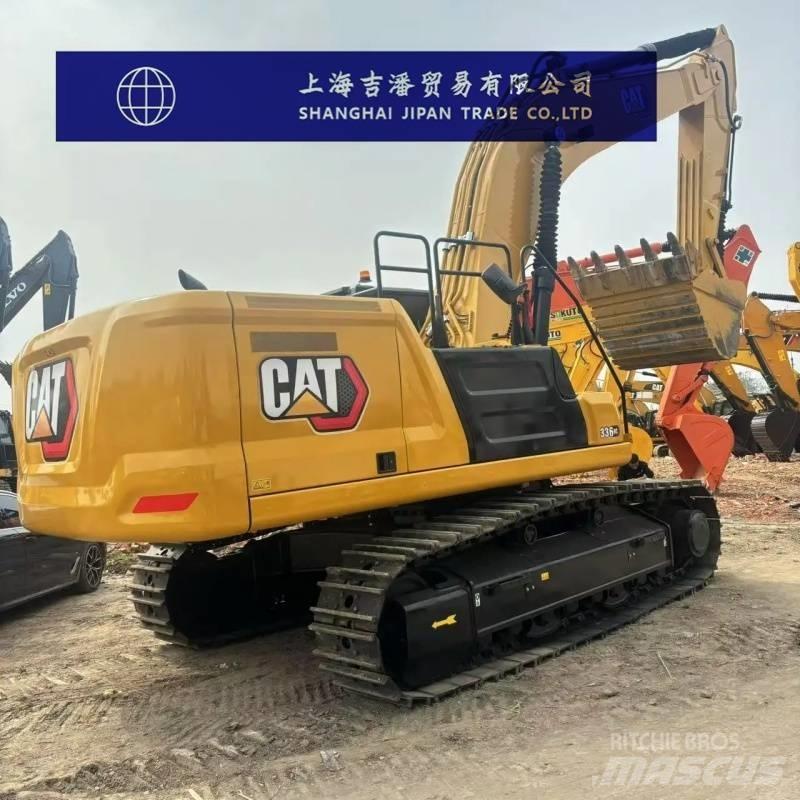

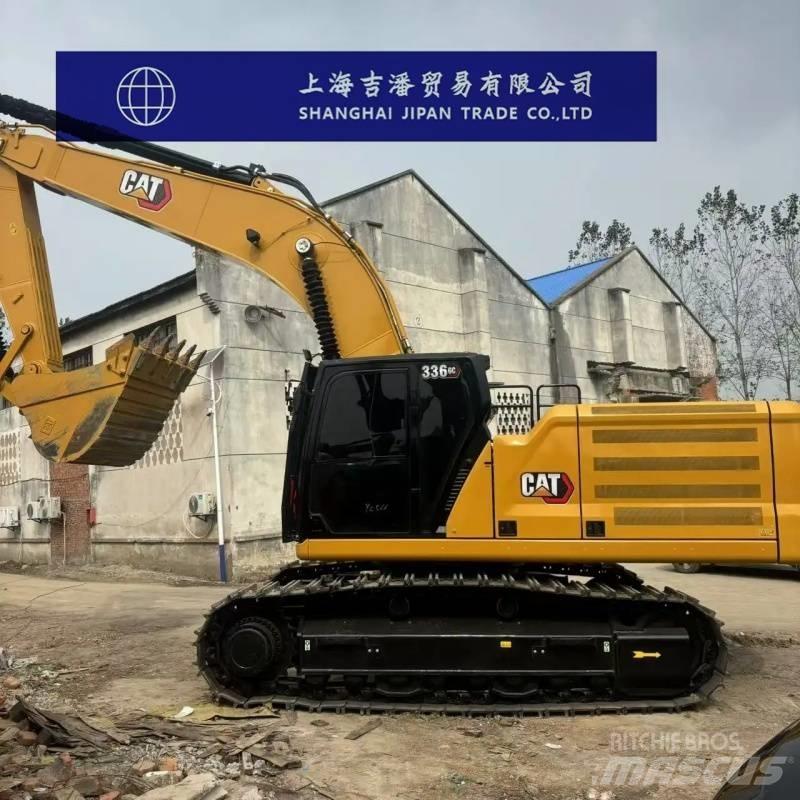

CAT 336 G C

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameter configuration of Caterpillar's new generation CAT336 GC hydraulic excavator Specification Power Traditional Power Imported by the manufacturer Bucket backhoe Tonnage (tons)36 The overall working weight of the machine (kg) is 35,400 Bucket capacity (m³) : 1.88 Boom length (mm) : 6500 The length of the boom (mm) is 3200 Performance Rotational speed (rpm)8.74 Rotary torque (Nm)137 Walking speed (km/h) : 4.7 Climbing ability (%) : 70 Bucket digging force (kN)197 Bucket shaft digging force (kN)148 Maximum traction force (kN) : 297 Power system Engine model: C7.1 ACERT Rated power (kw/rpm) : 195/2000 Displacement (L)7.1 Cylinder diameter × stroke (mm) : 105*135 Hydraulic system The maximum flow rate of the main pump (l/min) is 559 Walking hydraulic circuit (Mpa)35 Rotary hydraulic circuit (Mpa)28 Control hydraulic circuit (Mpa)35 Oil capacity Fuel tank (L)600 Hydraulic oil tank (L)153 Hydraulic System (L)373 Engine oil change volume (L) : 20 Coolant (L)19 Main body size Total transportation length (mm) : 11,170 The total transportation width (mm) is 3190 The total transportation height (mm) is 3170 The total length of the track (mm) is 5030 Track gauge (mm) : 2590 The ground clearance of the counterweight (mm) is 1250 Minimum ground clearance (mm)510 The center distance of the idler wheels (mm) is 3610 Rear end turning radius (mm)3530 Scope of work The maximum excavation radius of the shutdown face (mm) is 11050 Maximum excavation depth (mm) : 7520 Maximum excavation height (mm) : 10,300 Maximum unloading height (mm) : 7080 Maximum vertical excavation depth (mm) : 5660 Maximum effective excavation depth (mm) : 7360
